Description

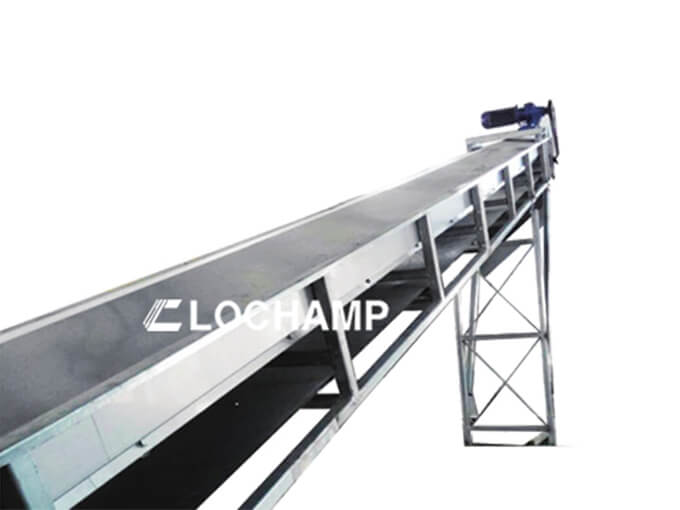

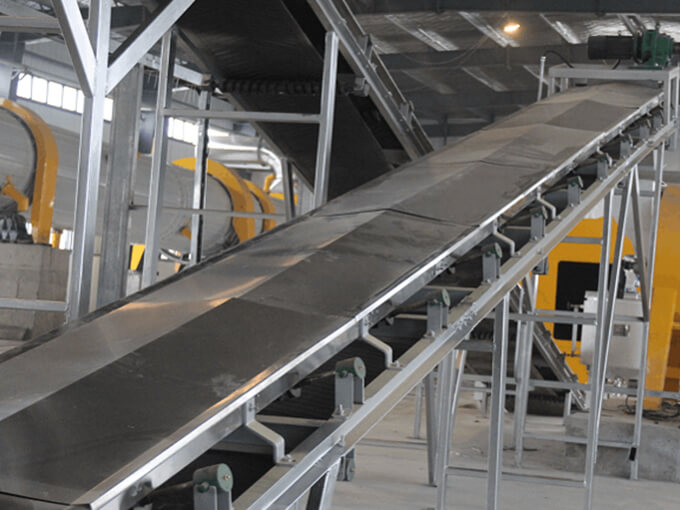

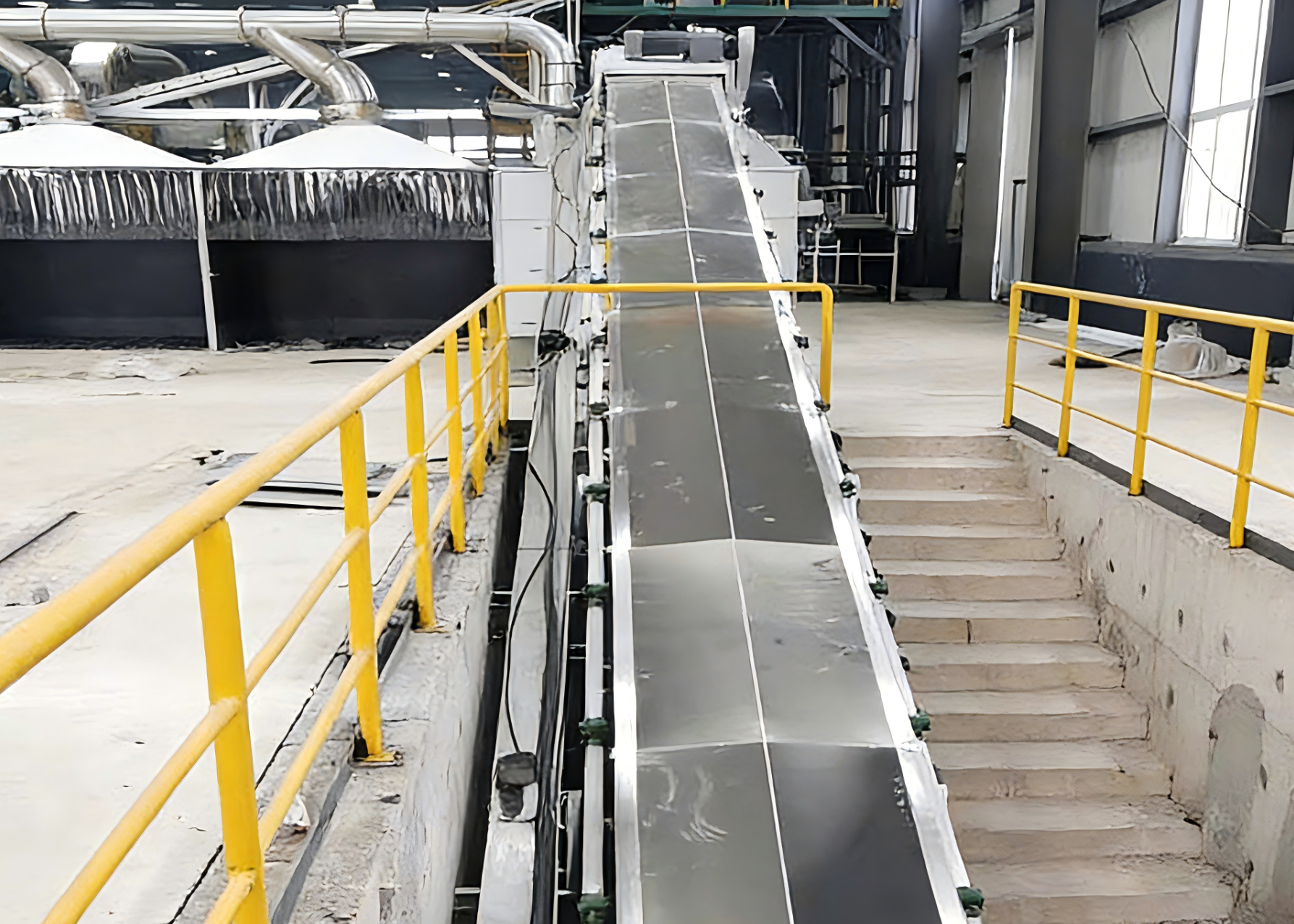

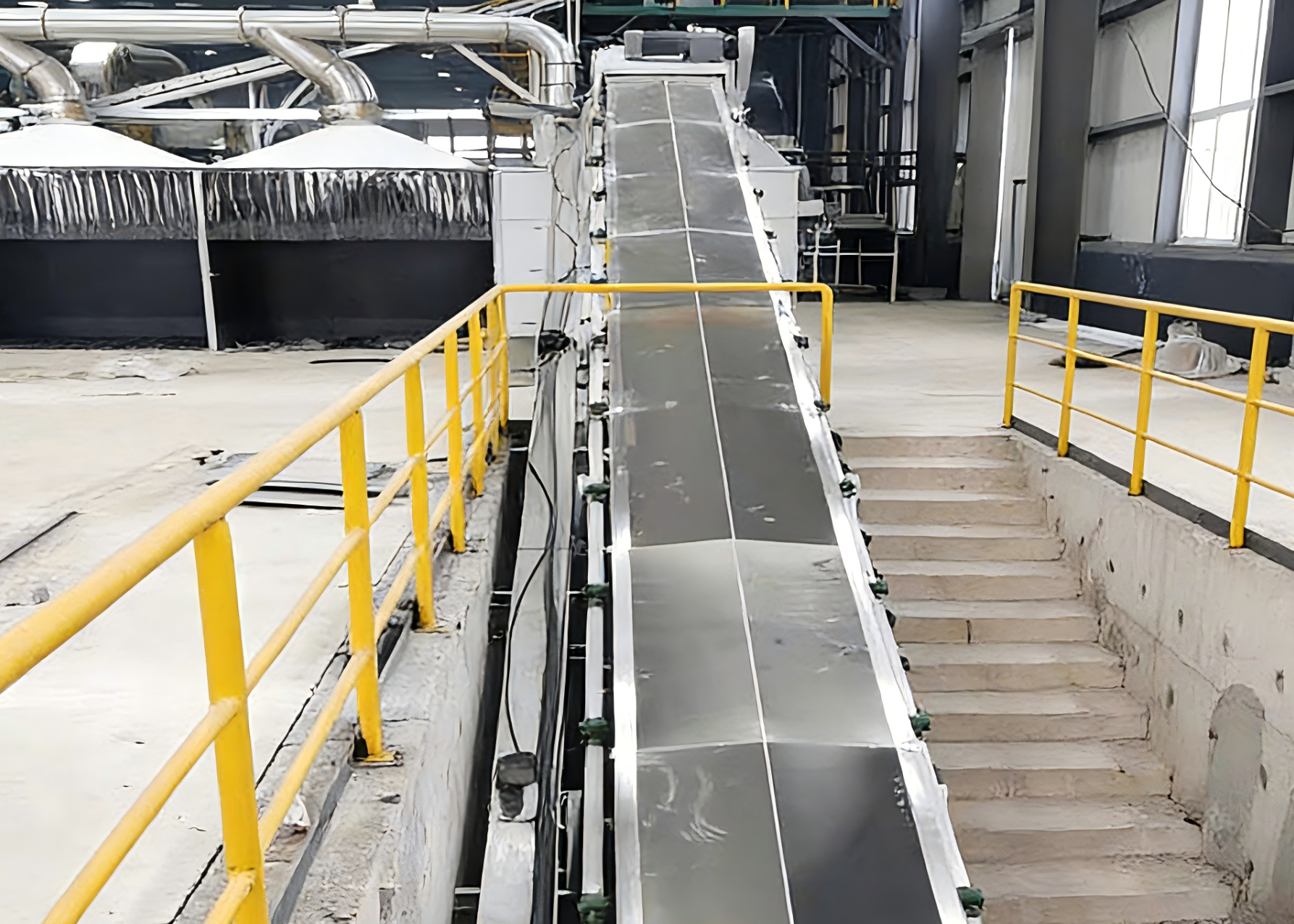

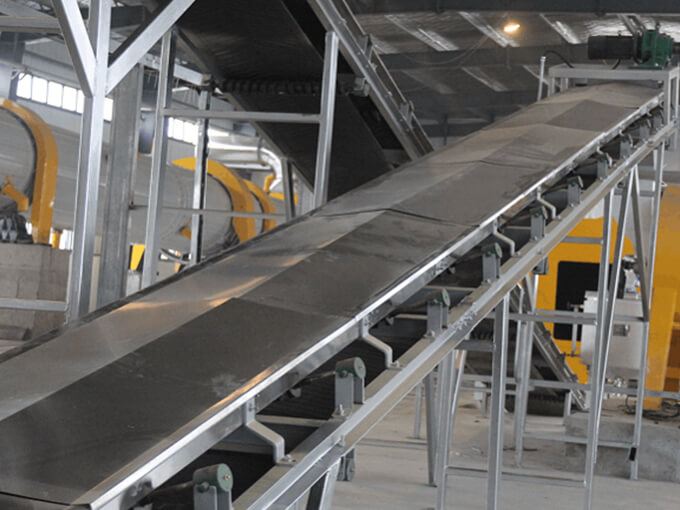

Belt conveyor is suitable for conveying powdery and granular materials. The length and assembly fom of the machine can be determinedaccording to the user's requirements. The transmission can be either an electric drum or a drive device with a drive frame.
Product advantage
- The belt runs in the groove body without deviation;
- There are scraping devices on the top and bottom of the belt, and the belt does not stick to the material,
- The tank body and the upper cover in contact with the material are made of 304 S.S., which is durable;
- Fully enclosed belt conveyor, no dust spillage;
- Use spiral rubber roller, non-stick material, anti-corrosion and durable. Refil lubricating oil without stopping. Easier to replace beanngs.
Parameters
| Model | Belt width（mm） | Capacity (t/h) | Working inclination angle ° | Power（kw） |
| TDSF500 | 500 | 3-10 | ≤22 | Depends on length |
| TDSF650 | 650 | 10-20 | ||
| TDSF800 | 800 | 20-50 | ||
| TDSF1000 | 1000 | 50-100 |
