Introduction

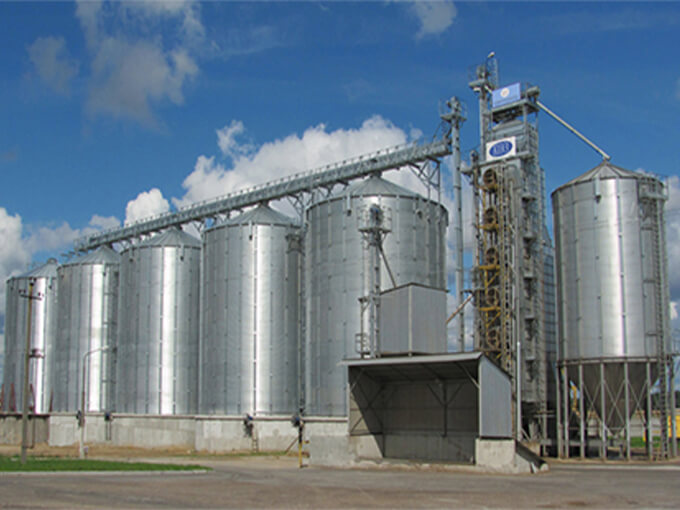

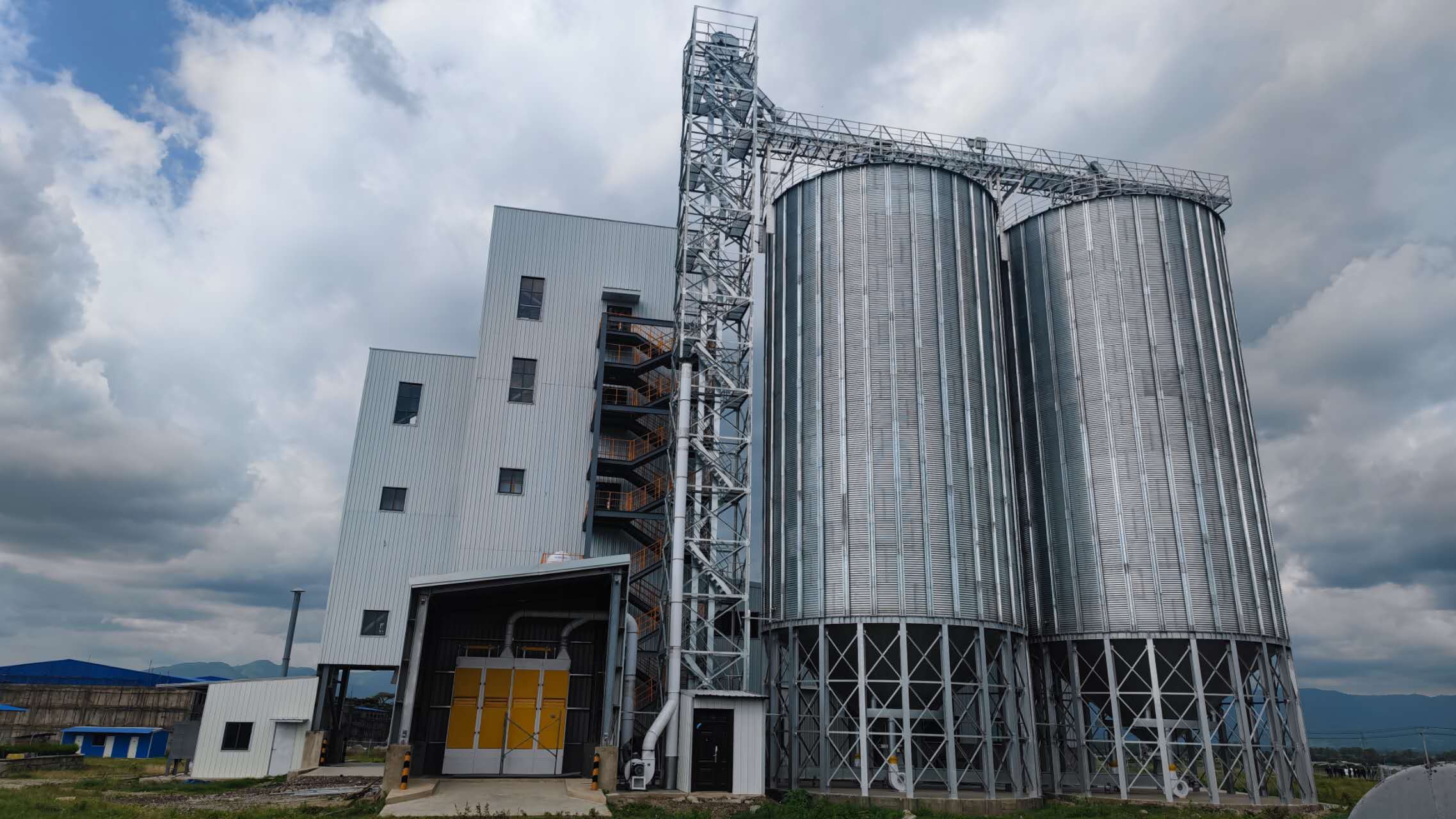

The steel cone bottom silo, also known as the hopper bottom steel silo, is a high-efficiency self-discharging storage solution engineered for free-flowing granular and pellet materials. Featuring an integrated tapered steel hopper and elevated steel support frame, this silo realizes full gravity discharge without heavy auxiliary conveying equipment, making it a mainstream choice for small and medium-scale continuous material storage and rapid turnover scenarios. Adopting assembled hot-dip galvanized steel plate structure, it integrates lightweight design, stable performance and convenient operation, fully complying with international grain and industrial storage standards.
Structural & Technical Featuresrios
- Optimized Cone Angle Design: Standard 60°±2° hopper angle (customizable 45°/55° options) forms the best self-flow slope, effectively eliminating material bridging, clogging and residual accumulation. The cone bottom is reinforced with 3.0mm thick steel plates, stronger and more durable than the 2.5mm standard silo body plates, resisting material impact and pressure for long-term stable operation.
- Full Gravity Self-Discharge: The elevated frame design completely separates the silo body from the ground. Stored materials slide down automatically by gravity, achieving thorough discharge with extremely low residual grain rate. No manual cleaning or secondary material handling is required, greatly saving labor and time costs.
- Premium Corrosion Resistance: The whole silo body, support frame and cone bottom adopt double-sided hot-dip galvanizing process with a zinc coating weight of 275g/㎡ and a thickness of over 80μm, delivering excellent rust, water and oxidation resistance. It adapts to harsh outdoor and humid workshop environments with a service life of more than 20 years.
- Modular Assembly & Customization: Standard bolted assembly structure ensures easy transportation, quick on-site installation and convenient maintenance. Single silo capacity ranges from 100 tons to 5000 tons, with customizable diameter, height and discharge valve specifications to match diverse production lines.
- Complete Supporting Systems: Optional aeration ventilation, real-time temperature monitoring, dust removal and safety protection systems are available to ensure material storage safety, prevent mildew, moisture and insect infestation during short and medium-term storage.
Application Scenarios
Widely applicable for storing free-flowing materials such as corn, wheat, rice, soybeans, feed pellets, plastic particles and chemical granules. Ideal for small and medium-sized grain mills, feed factories, rice processing plants, breweries, small farms and industrial production lines with frequent material turnover and high discharge efficiency requirements.
Product Advantages
Zero auxiliary discharge equipment, low operation cost, high discharging efficiency, no material residue, simple daily maintenance, flexible and compact layout. It is the most cost-effective storage option for frequent material feeding and discharging scenarios.Our company is established in 1996, which is a very great large-scale professional steel structure construction company. The year of 1996 is the period when China light steel structure industries grew up and developed rapidly. We are the professional steel structure warehouse/workshop/factory/shed pioneer in the China Steel Structure Construction Engineering Field!
