Description

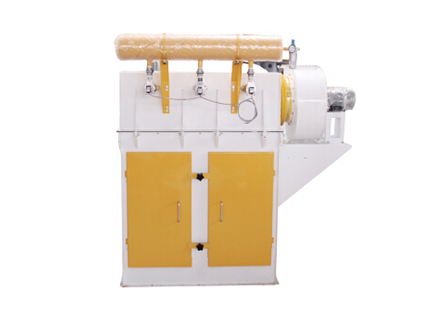

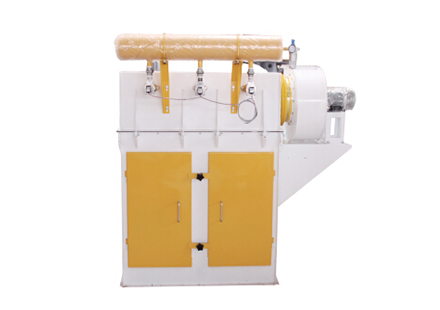

Dust collectors are advanced air filtration systems designed to effectively capture and remove dust particles from industrial air streams. Using high‑pressure air pulses, the system instantly cleans the filter bags, ensuring continuous operation and stable performance even in high‑dust‑load environments.
Adavantage
1.Adopt TDFK type high pressure solenoid valve,increase air blowing,the dust removal effectis good.
2.Air inlet is above ash hopper,to avoid the dust air scour bag directly,improve the use life ofthe bag.

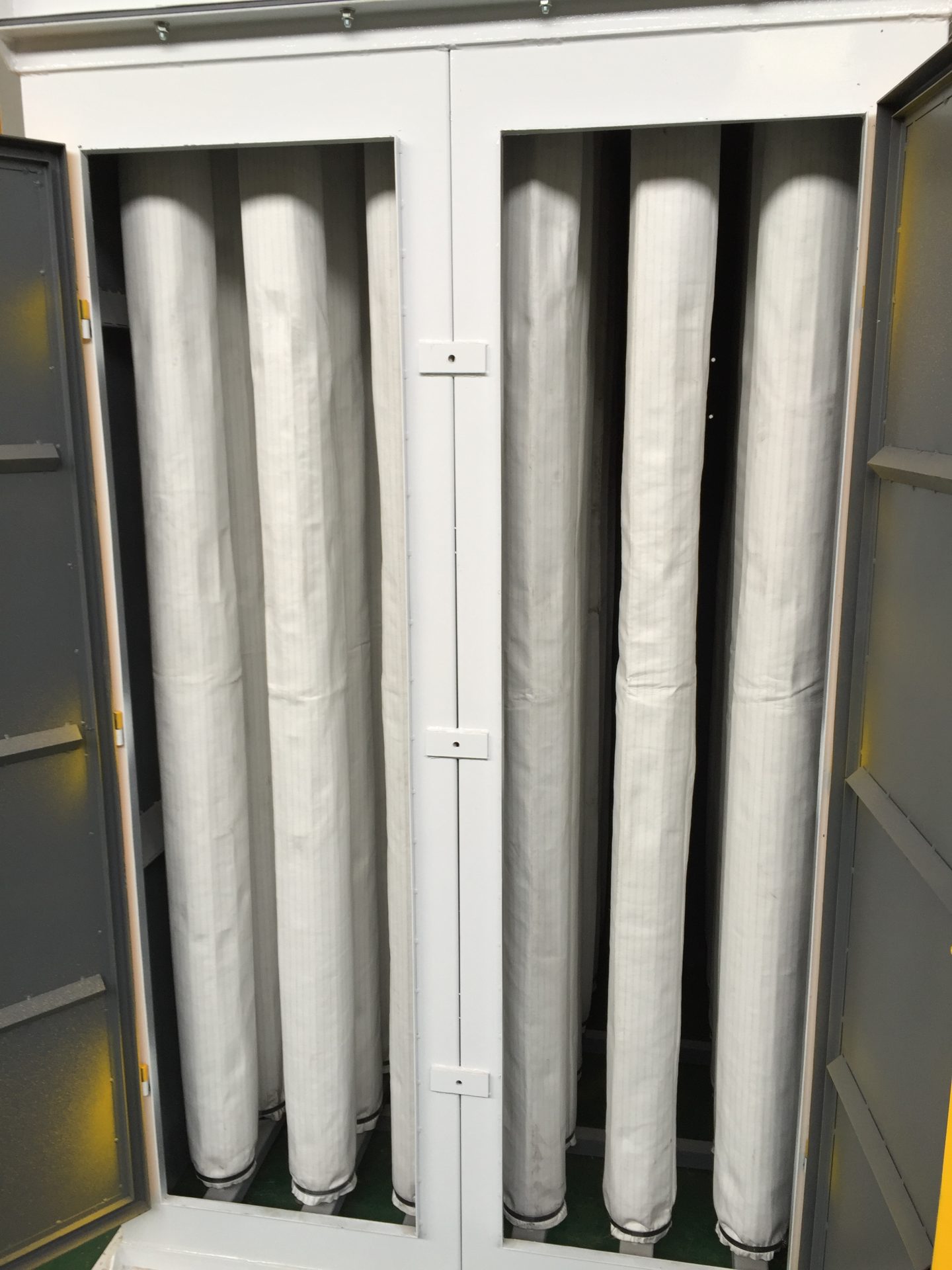

3.Adopt bags' fast loading and unloading mechanism patent technology, The upper space can reducethe height of 1.5 meters when open the door,we can quickly remove the filter bag one by one.
4.The filter area of each bag is 1m³ which can greatly reduce cover area.
Parameters
| Model | Power（kw） | Air voiume(m³/h) |
| TBLM4Y | 1.5 | 2100-2300 |
| TBLM36Y | 11/15 | 4320-8640 |
| TBLM48Y | 15/22 | 5400-10800 |
| TBLM56Y | 15/22 | 5400-10800 |
| TBLM4 | 1.5 | 360-720 |
| TBLM9 | 2.2 | 1080-2160 |
| TBLM12 | 3 | 1440-2880 |
