Description

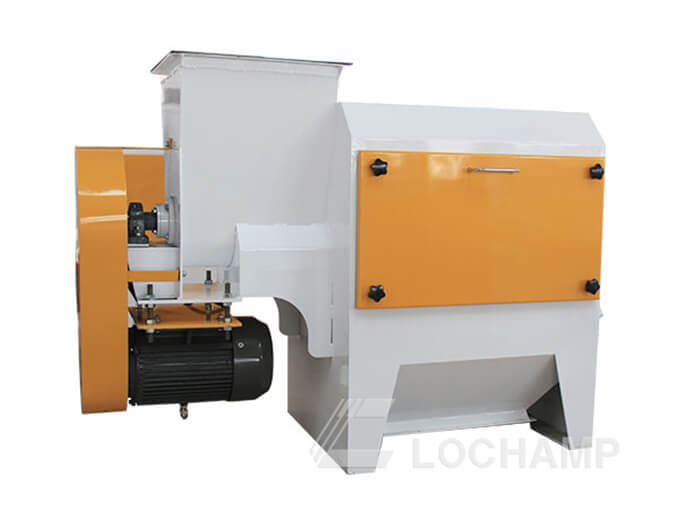

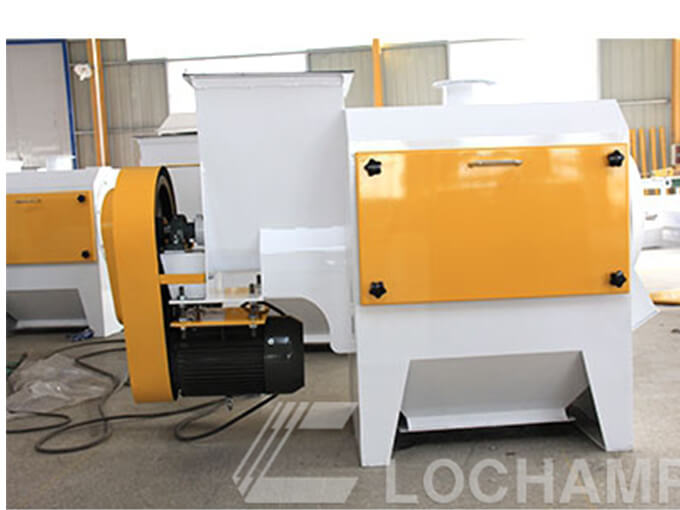

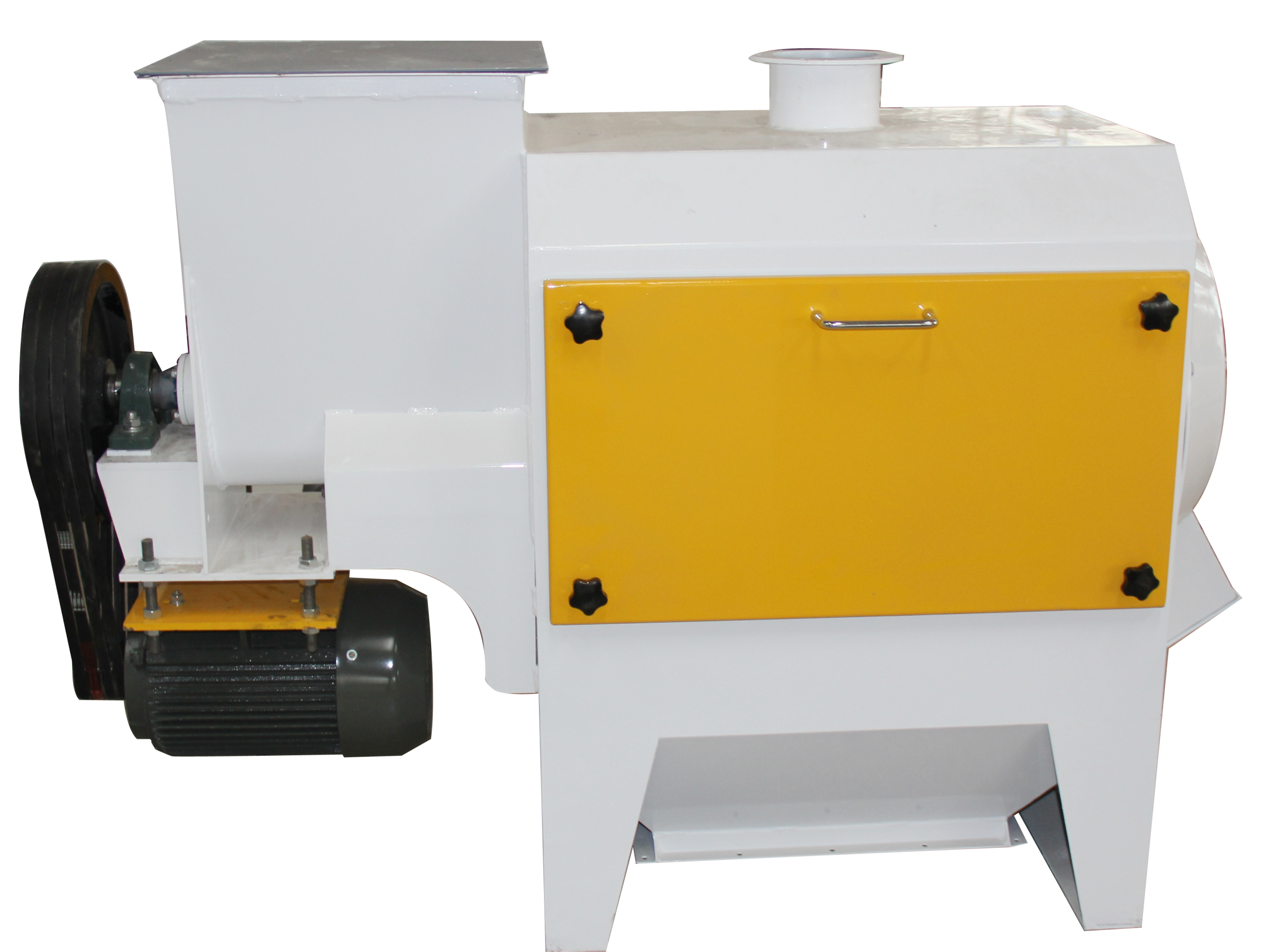

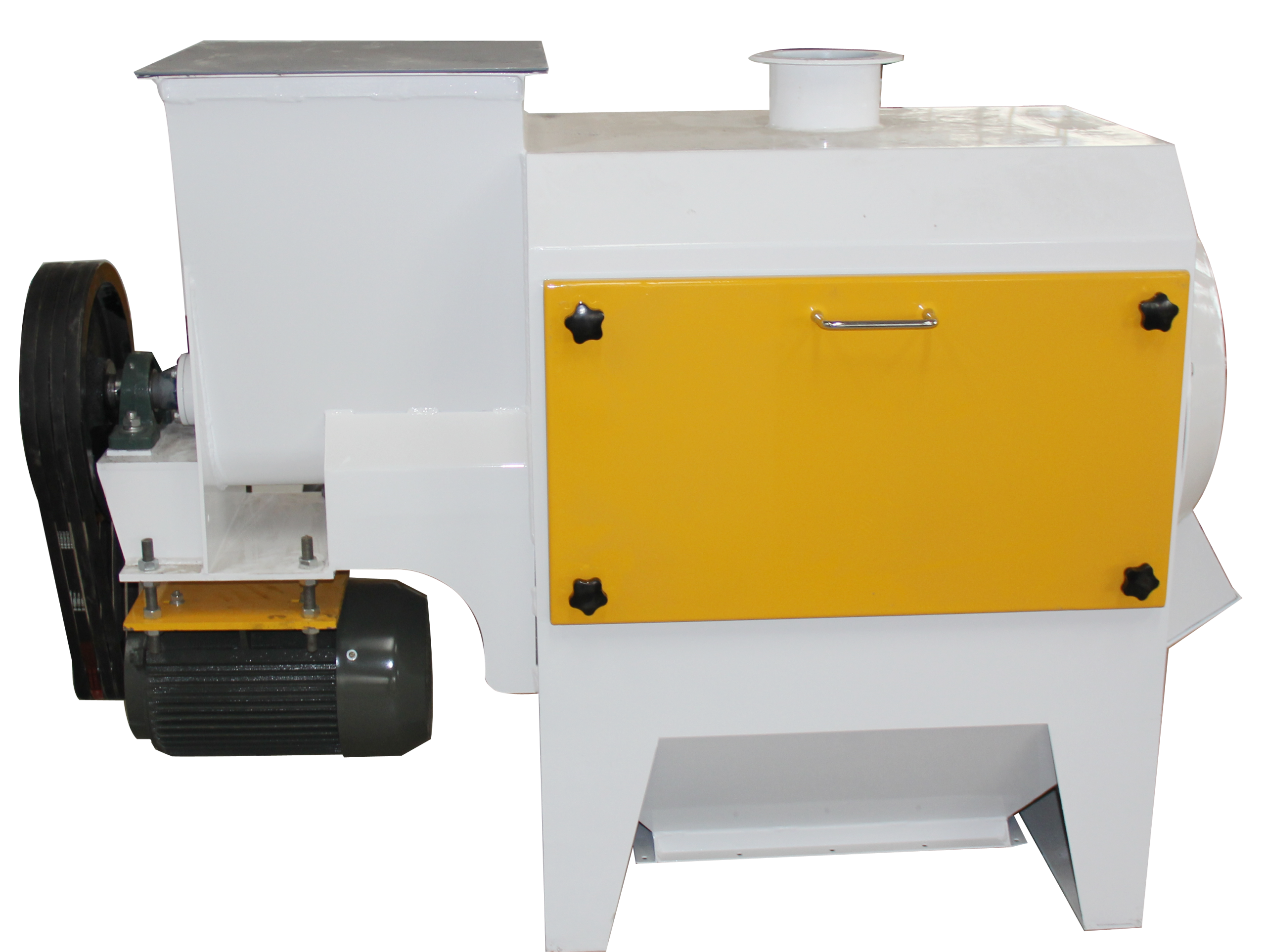

Lochamp SCQZ Series Conical Drum Type Pre-cleaner is mainly used for powdery material cleaning in compound feed mills—breaking the agglomerate effectively and separating large impurities such as straw, rope, paper, stones and so on to ensure the normal operation of the subsequent devices.
Features
1. Used for pre-cleaning of powder material, break the agglomeration effectively, separate large debris such as stone. The machine can also be used to sieve materials after mixing, clearing away from the shape.
2. With high yield, good cleaning effect, small power consumption, simple structure and small land occu-pation.
3. Access door is convenient for daily maintenance and overhaul.
cylindrical screen can be changed easily.
4. According to the material feature we can offer suitable matching sieve to achieve the best effect.
Parameters
|
Model |
Power(kw) |
Capacity (t/h) |
Motor series |
Size(mm) |
|
SCQZ60 |
5.5 |
10-15 |
6 |
1150×826×1685 |
|
SCQZ90 |
11 |
20-30 |
6 |
2166×1111×1500 |
