Description
The pellet mill is professional equipment for feed processing and animal breeding. It presses loose raw materials such as corn, soybean meal and straw into uniform pellet feed. The machine can ripen feed, retain nutrients, reduce feed waste and improve palatability and utilization rate. It is suitable for small and large farms and feed factories, and the finished pellets are easier to store and transport.
Features
1.Flexble transmission mode, safe and efficient
Achieve adjustable speed by replacing the pulley
Double motors with triangle belt driving system, smooth rotation, low noise and no need of lubrication.
2.Practical and durable
Compared with gear machine, the main shaft bearing is more durable, no oil leakage phenomenon. The starting current is only half of gear machine because of double motors, and little influence on powergrid.

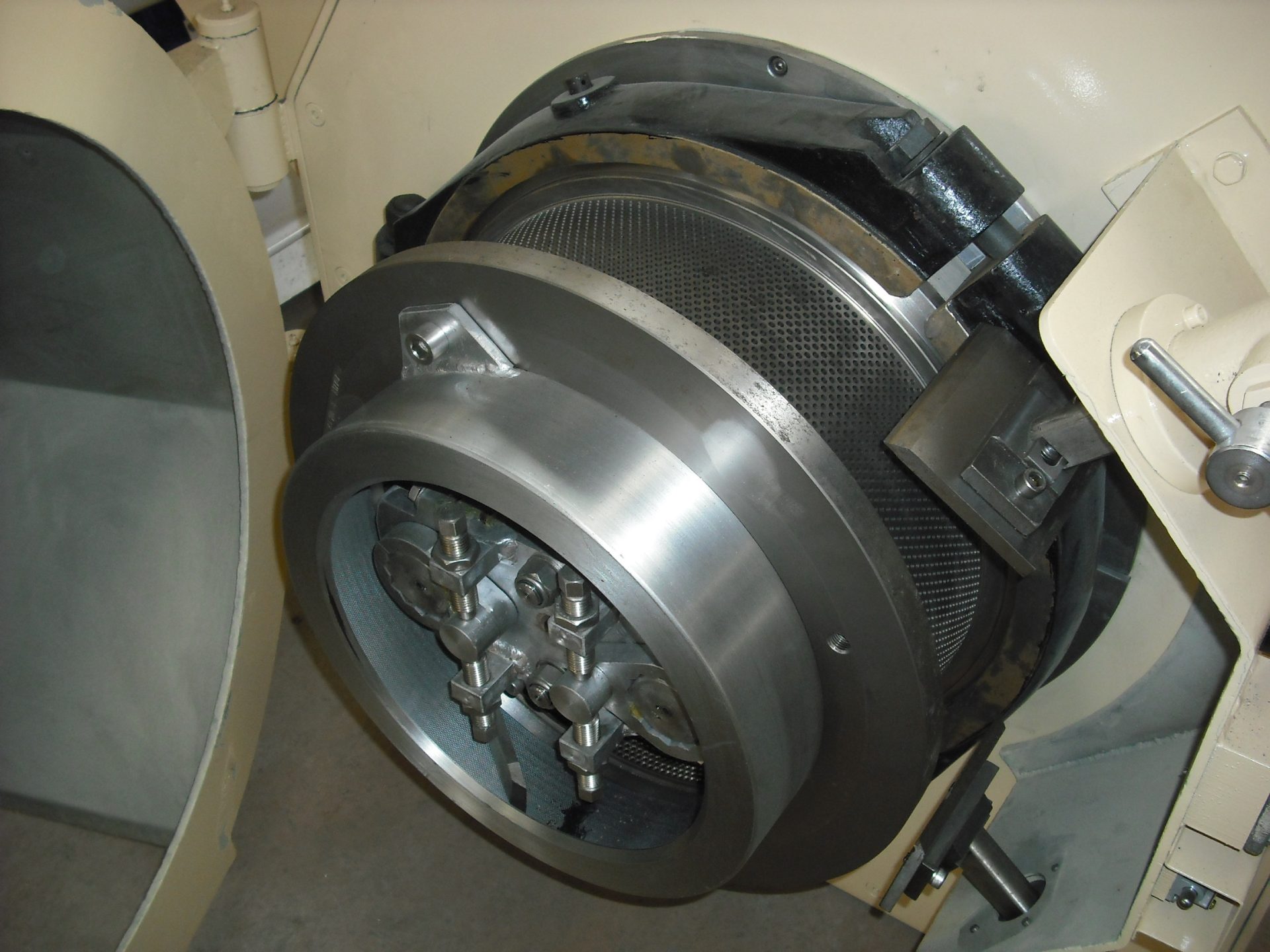

The support bar and main shaft in pelletizing bin are forged together. Roller and main shaft areprocessed together to ensure the parallelism between the eccentric shaft of roller and axis of ring die, alsoto keep uniform gap between roller and ring die.
3.Multiple choices,Wide application
Can be used for livestock and poultry feed, ruminant feed, fish feed.
Parameters
| Model | Power of main motor (kw) |
Capacity (t/h) | Inner dia. of die (mm) |
No.of rollers | Pellet size (mm) |
| SZLH25 | 2×11 | 0.5-1.5 | 250 | 2 | 2-10 |
| SZLH35A | 2×30 | 2-6 | 350 | 2 | 2-10 |
| SZLH42A | 2×55 | 3-12 | 420 | 2 | 2-10 |
| SZLH52A | 2×75 | 4-16 | 520 | 2 | 2-10 |
| SZLH55A | 2×75/90 | 5-20 | 550 | 2 | 2-10 |
