Mixing Machine

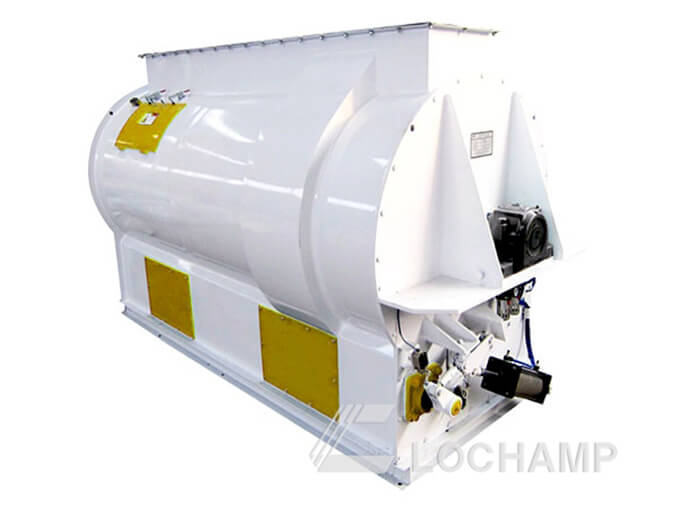

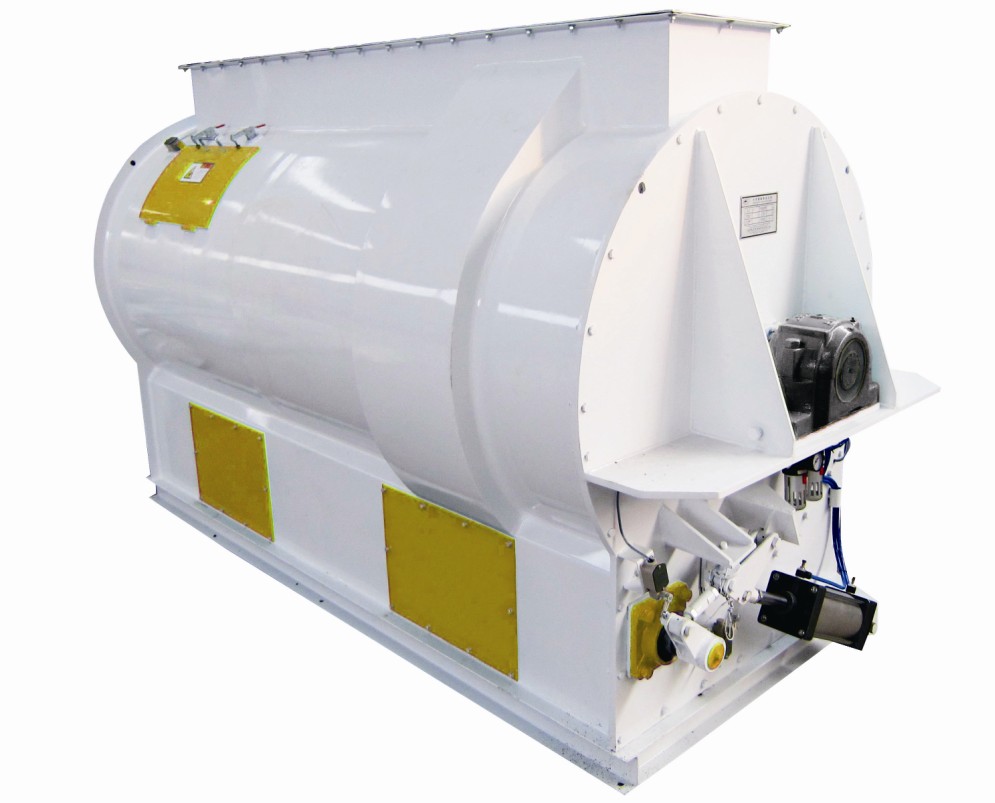

SLHY Series Double Ribbon Mixer

Features:

  • Type: Double Ribbon Mixer Machine.
  • Mixed weight(kg/bat): 500 – 1000.
  • Mixing time:2-4 Minutes.
  • Application:used in medium and small scale feed mill.

Description

SLHY Series Double Ribbon Mixer machine widely used in medium and small scale feed mill, for mixing powder materials, guarantee uniformity and quality of complete feed.

Features

1.Cross section of cylinder round, mixing without dead corner,mixing time: 2-4 minutes,barrel wall plot-free;

2.Enlargement in length opened discharge door at the bottom to reduce residues;

3.Mixed: CV ≤ 7,

4.Opening angle greater than 90 degrees, the door self-locking, discharge door does not open at cylinder pressure loss;

Parameters

odel

vomule (m3)

Size(mm)

Mixed weight (kg/p)

Power(kw)

Fullness coefficient

Motor Series

cv

speed m(r/min)

SLHY1.0

1

3221×1041×1460

500

7.5

0.4~0.9

4

≤7

25

SLHY2.0

2

3258×1821×1742

1000

15

0.4~0.9

4

≤7

23
